Jenny’s Playlist Costume

Costume for a music duo Jenny’s Playlist
2014

Photo by Xavier Antoinet

MAKING OF :::

IMG_3573

Currently I am making costumes for the music duo “Jenny’s Playlist”. Their wish was to have costume that lights up as they perform. Yes, it is a blinky LED costume! After a long meeting with them to decide what kind of aesthetic it should be, and how it should be light up, we decided to go for chic polygon like monotone look. Here is a log of how the development is coming alone.
They will perform at Wear It Berlin festival, and this will be the premier for this blinky shirts!

Here is the first test with triangle shapes. It defused light good enough so the LED does not look so pointy or dotty.
IMG_2950IMG_2952IMG_2962IMG_2965IMG_2972IMG_2978

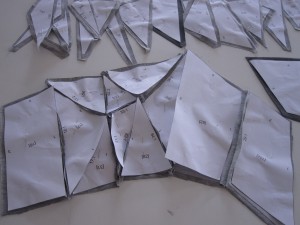

The next tryout I made was to make the entire shirt with polygons. The idea is that the above triangles are distributed to the entire shirt as polygons and it does not look like individual cones. I was very much inspired by a project of The T/shirt Issue. I followed their instruction to construct 3D model of T-shirt in 3D program (blender) and print out each polygon to reconstruct 3D T-shirt made out of polygons with paper or fabric. Well, it is a loooooot of work (I had 107 polygons) to assemble individual polygons back into one T-shirt.

IMG_2998
IMG_2999
IMG_3002
IMG_3006
IMG_3007
IMG_3416
IMG_3419
IMG_3420
IMG_3423
IMG_3424
IMG_3425
IMG_3430

At the end, despite a Looooot of work, it did not look very good. The polygon shape did not hold its shape well, resulting not enough space between LED and the polygons. I used not so thick fusible to keep some transparency for the light to shine through, which was too week to keep the individual polygon shape. Clemens (one of the Jenny’s Playlist) tried it.. and, hmm it does not look good 🙁
Well, this is part of the process. This idea is dismissed for now.
IMG_3439IMG_3440IMG_3441IMG_3447IMG_3448IMG_3451

Time to go back to the beginning. More sketching!
IMG_3454IMG_3460IMG_3462IMG_3471IMG_3469

This time, the idea to go for classic shirt look than T-shirt, and work with triangler/polygon geometric shape.
IMG_3476IMG_3477IMG_3506IMG_3507IMG_3508IMG_3509IMG_3515

For the light source, I am using Neo Pixels by Adafruit. This is a RGB LED that you can control with 1 data line, and they made it sew-able shape. I am using Gunze & Mitsufuji gold plated conductive thread for this. I have about 20 pixels in one chain. This thread has very little resistance compare to silver plated threads. I still get slight “candle light” effect when I light LEDs with white or yellow, but it is not crucial for this project. As far as I tested, this effect comes from the resistance on power lines as I use conductive thread for + and – connections as well. It reduces a bit when I use 9V wall power instead of 3.7V batteries.
IMG_3516IMG_3517IMG_3518IMG_3520

Here is how the shirt looks so far.. well, it needs to be still adjusted and hooked up properly. But I think the final version for the Wear It show will be this one.
IMG_3540IMG_3541IMG_3562IMG_3564

More Pictures from the making..

Reference:
The T/shirt Issue
Bronwen Marshall

NOT A TOY (book)

Neo Pixel by Adafruit
